  • - Powerful
  • - Hard materials
  • - Automatic feeding
  • - Roughness elimination
  • - Versatile


SQUAREMILL is an extremely powerful and versatile plate beveller; it is the latest evolution of PURMILL. It can perform clad removal, do beveling at any angle as well as facing of plate (at 0 degrees); it can bevel virtually any hardness of steel including titanium. This machine is able to achieve a bevel width of 40 mm.  The bevelling angle is between 0° and 90°.

SQUAREMILL is able to bevel plates with a thickness from 6 to 60 mm in its standard configuration. Its unique bevelling system allows you to achieve a mirror finish with no physical effort by the operator, as the machine is moving along the plate at variable speeds by means of two propelling wheels. The machine is equipped with sensors which stops the machine when it reaches the end of the plate.

The motor gives you power of 3 kW and the milling tool rotation speed can be regulated between 250 to 900 RPM; which comes in handy when beveling extremely hard materials. The beveller’s maximum bevelling speed is 1.6 m/min. SQUAREMILL can compensate for some unevenness of the flooring which helps in case of imperfection of plate thickness.


Technical data

Maximum bevel width 40 mm
Bevelling angle  0° - 90°
Plate thickness 6 - 60 mm
Beveling speed  0 - 1.6 m/min
Motor Power  3 000 W
Motor idle speed  300 - 800 rpm
Voltage  400 V/50 Hz, 3-phase
Tooling 9 inserts
Clad removal  8 inserts
Machine weight (incl. trolley) 205 kg
electric version
Do you have a question about this product?

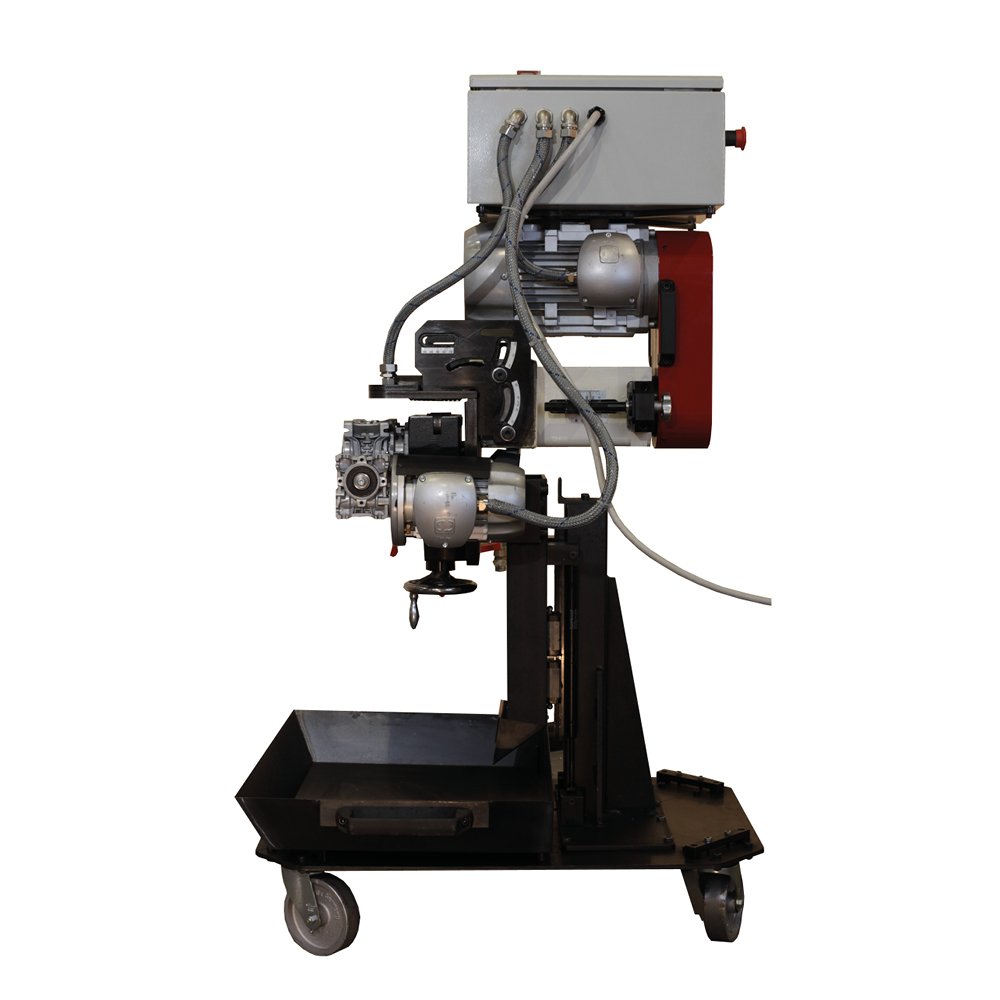

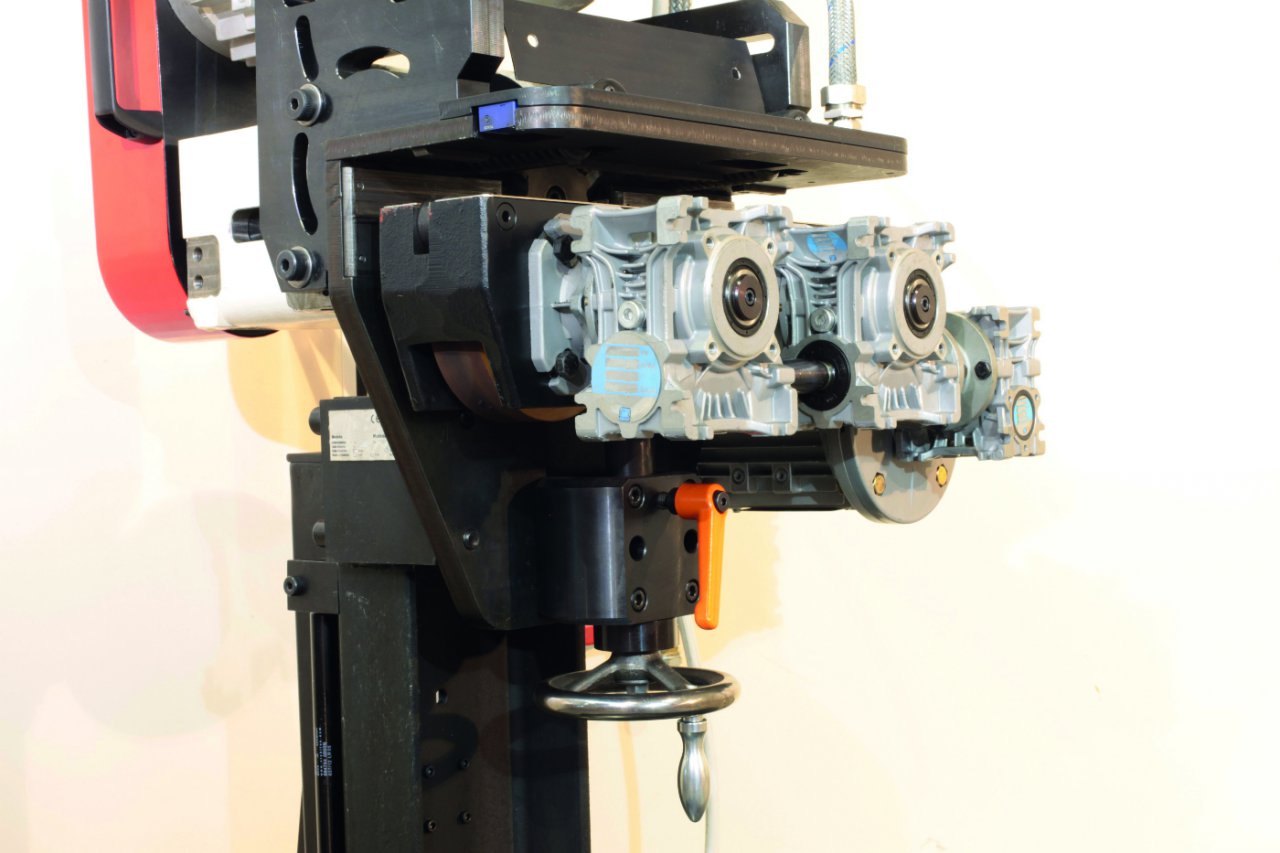

Product images:
