VEERIO

Keypoints:

  • - For small pieces
  • - Various materials
  • - Adjustable speed
  • - V-shaped
  • - Perfect alignment

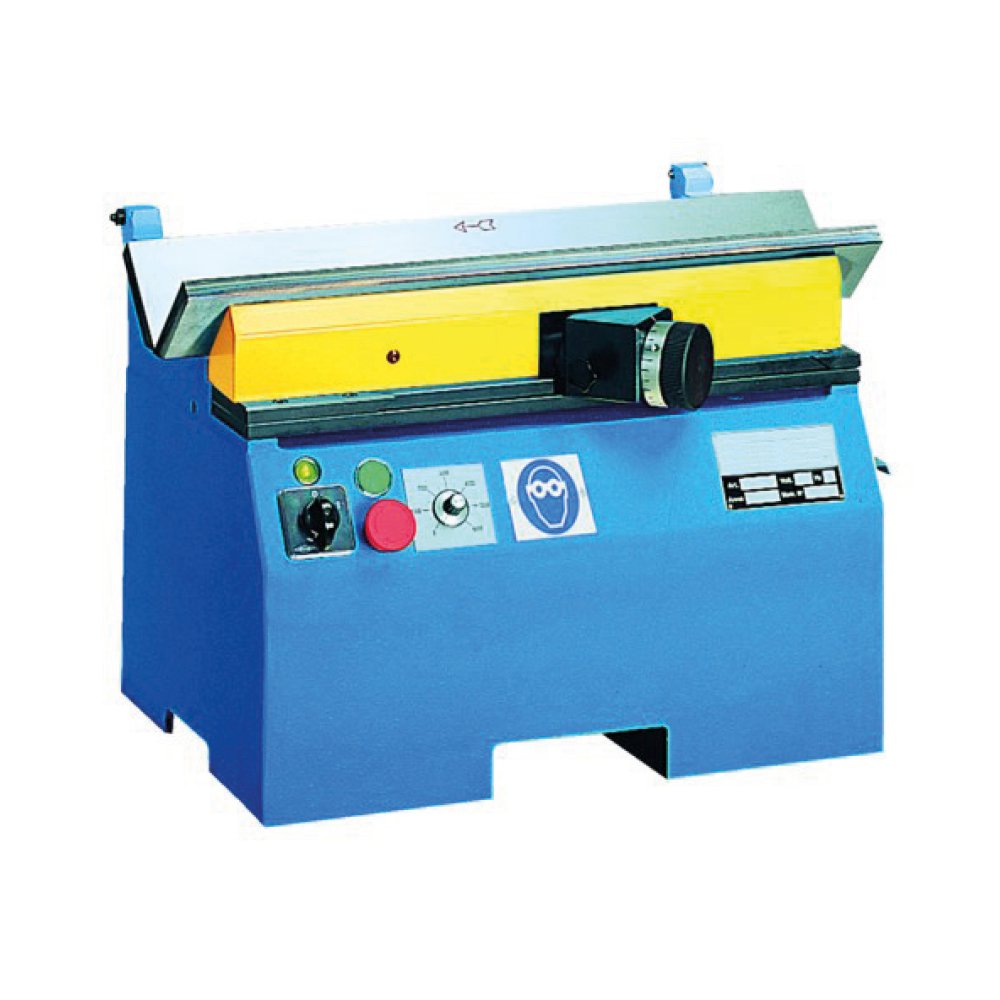

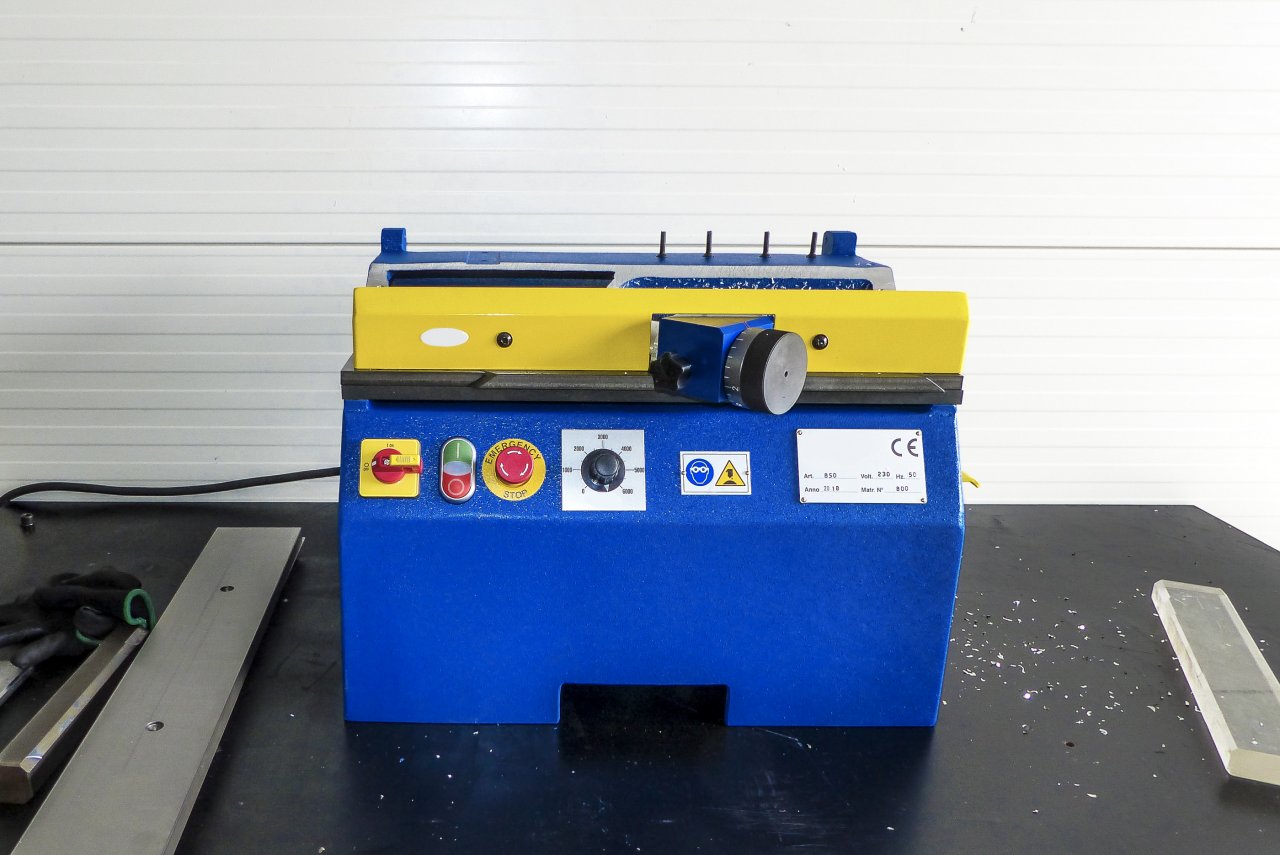

VEERIO beveller has V-shaped plate guides for perfect alignment of the bevelled piece against the bevelling tool. This machine is designed to bevel straight edges of small pieces. Adjustable speed of motor enables the beveller to adapt to different kinds of bevelled material and improves VEERIO‘s performance also on resistant types of steel; aluminium, acrylic and some other types of hard plastic. VEERIO can bevel plates of unlimited thickness at an angle of 45° and maximum bevel width of 10mm. An automatic feeding device can be added, as an optional system.



Technical data

Maximum bevel width  10 mm
Bevelling angle  45°
Plate thickness Unlimited
Bevelling speed 1.1 - 3 m/min
Motor power 750 W

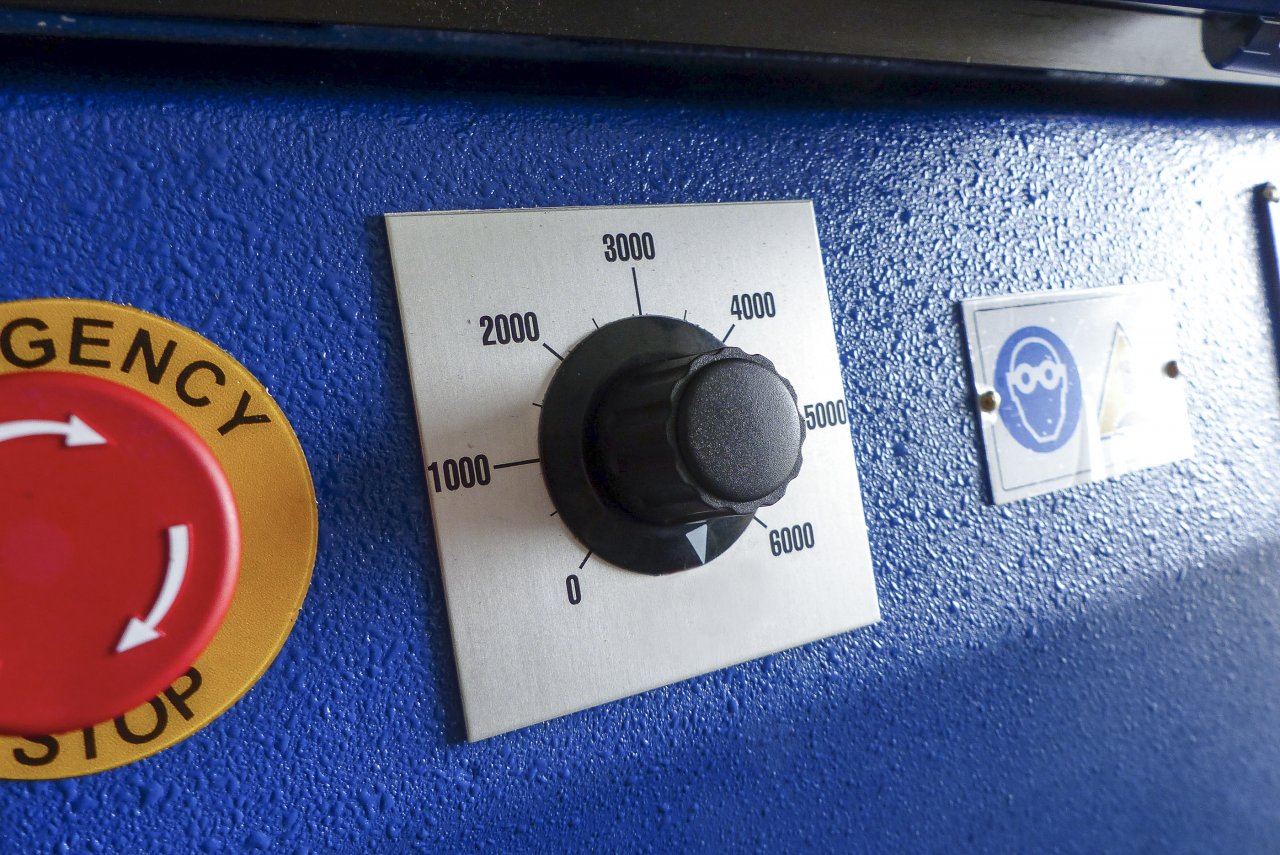

Motor idle speed 0 - 6 000 rpm
Voltage  240 V (single phase) / 50 Hz
Tooling 7 changeable inserts
Machine weight 57 kg
electric version
