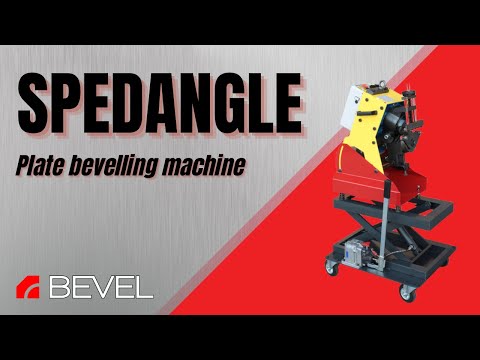

SPEDANGLE is a plate beveller that operates using a self gripping system and bevels large plates as well as smaller flat pieces by means of a rotating shearing-milling tool. SPEDANGLE can bevel plates with a thickness from 6 – 40 mm and a beveling angle of 22.5°, 30°, 37.5°, 45° and 55°. The change of bevelling angle is easy and quick without the need to purchase any additional accessories. The maximum bevel width is 18 mm on carbon steel and 15 mm on stainless steel and depends on the bevelling angle.
SPEDANGLE has the ability to bevel the upper side of the plate, as well as the lower one.* For large amounts of bevelling on the lower edge of the plate an inverted model, SPEDANGLE-UpD, is available. Bevelling is very easy as the machine either feeds small pieces through its bevelling device, or with larger and heavier plates it grips on the plate and its bevelling tool propels the machine along the plate.
The machine is supplied with a set of wheels for easier manipulation or an optional hydraulic trolley, settable in height, can be purchased. The machine has a two-speed system. It can bevel at the speed of 1.5 m/min or 3.0 m/min. SPEDANGLE can bevel plates with convex radii R>1,000 mm and concave radii R>5,000 mm. No special accessory is needed for bevelling of pipes. The minimum inside diameter of pipe is 125 mm.
*inverted version or crane required
|Maximum bevel width on carbon steel||18 mm|
|Bevelling angle||22.5°; 30°; 37.5°; 45°; 55°|
|Plate thickness||6 - 40 mm|
|Beveling speed||1.5 and 3.0 m/min|
|Minimal width of beveled plate||70 mm|
|Motor Power||800 W|
|Voltage||400 V/50 Hz, 3-phase|
|Machine weight||104 kg|
