Home > Plate bevellers > Self-propelled shearing > SHEELITE



  • - Self gripping
  • - Can bevel pipes
  • - Noiseless
  • - Can bevel curved edges


SHEELITE is a fast, noiseless and effortless plate beveller that operates using a self gripping system. It can bevel plates with a thickness from 3 to 16 mm with a maximum bevel width of 6 mm. The bevelling angle can be set to 22.5°, 25°, 30°, 35°, 37.5° or 45°, different bevelling angles can be changed using angle variation devices. SHEELITE is designed for bevelling of straight or curved (R>1000) edges.

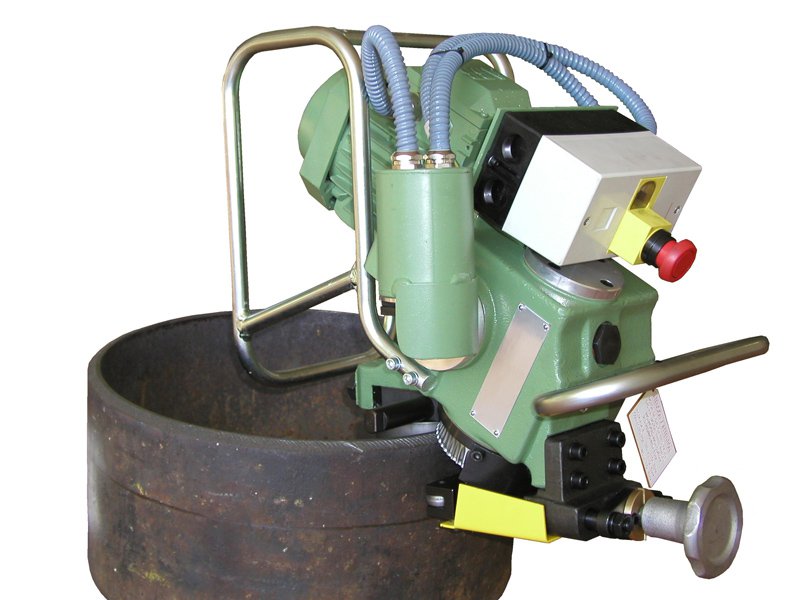

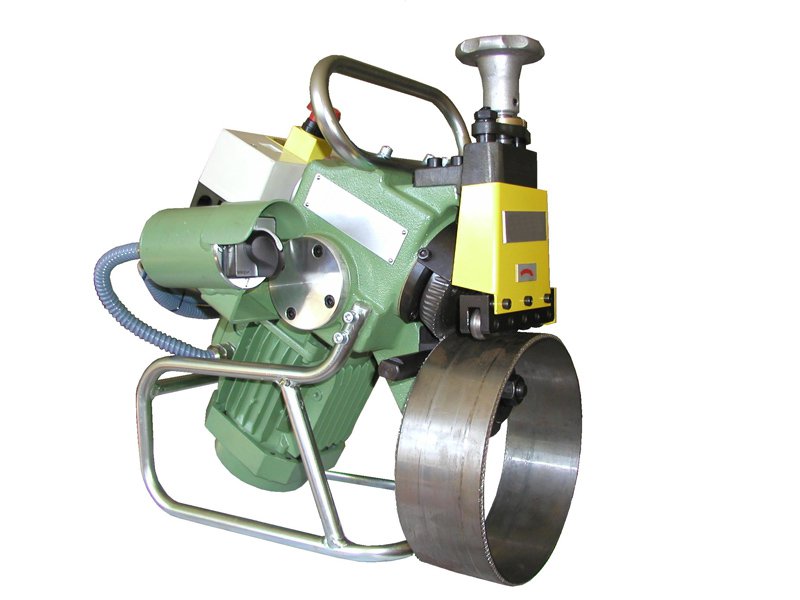

Bevelling is very easy as the machine either feeds small pieces through its bevelling device, or with larger and heavier plates it grips on the plate and its bevelling tool propels the machine along the plate. The beveling speed is 1.6 m/min. Bevelling is virtually noiseless. The machine’s weight is only 34 kg. Some simple types of outside bevel can even be performed on pipes.

Technical data

Maximum bevel width  6 mm
Bevelling angle  22.5°; 25°; 30°; 35°; 37.5°; 45°
Plate thickness 3 - 16 mm
Beveling speed  1.6 m/min
Minimal width of beveled plate 55 mm
Motor Power  550 W
Voltage  400 V/50 Hz, 3-phase
Tooling Shearing tool
Machine weight 34 kg
electric version
Do you have a question about this product?

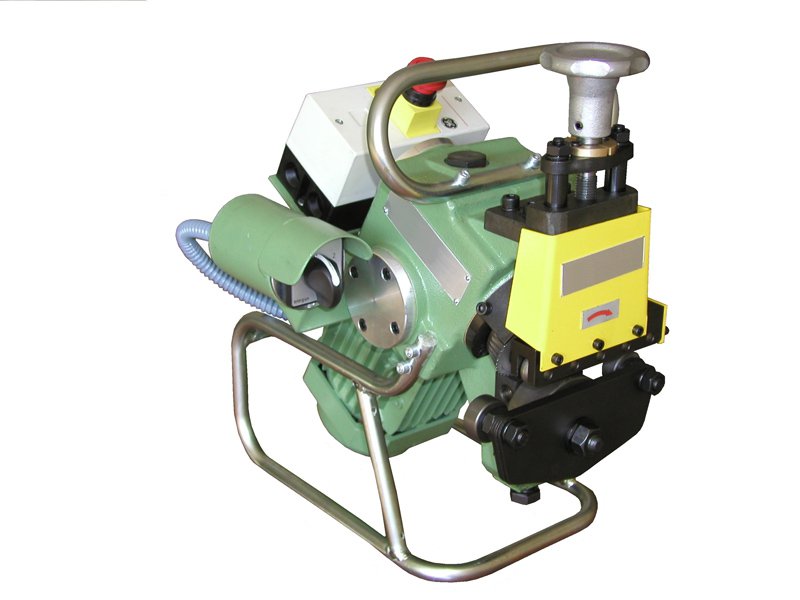

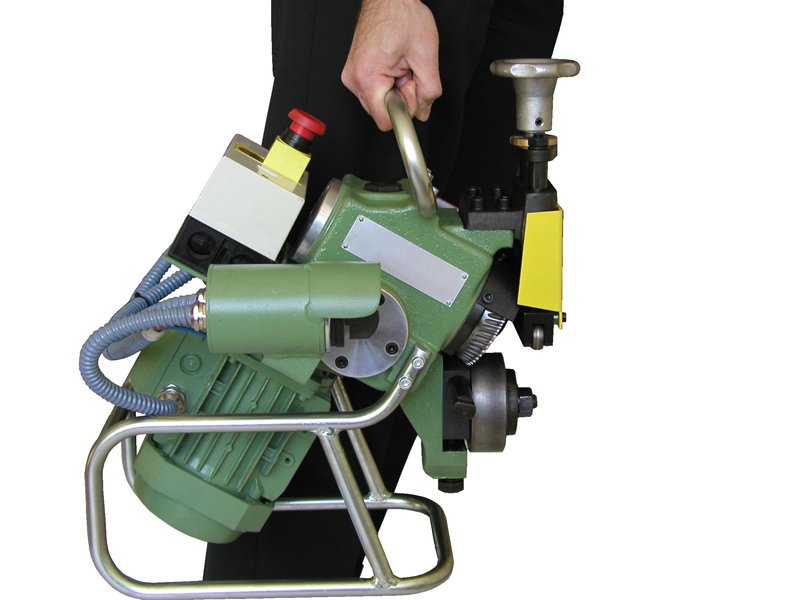

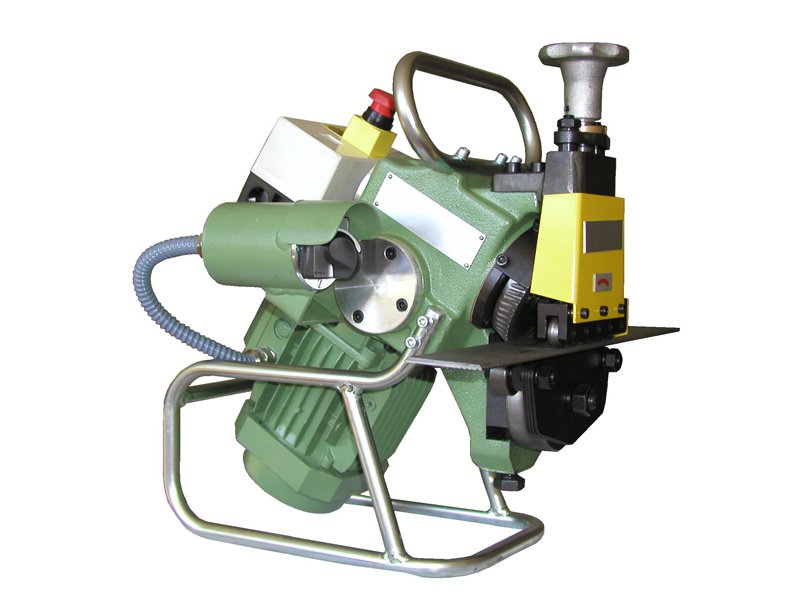

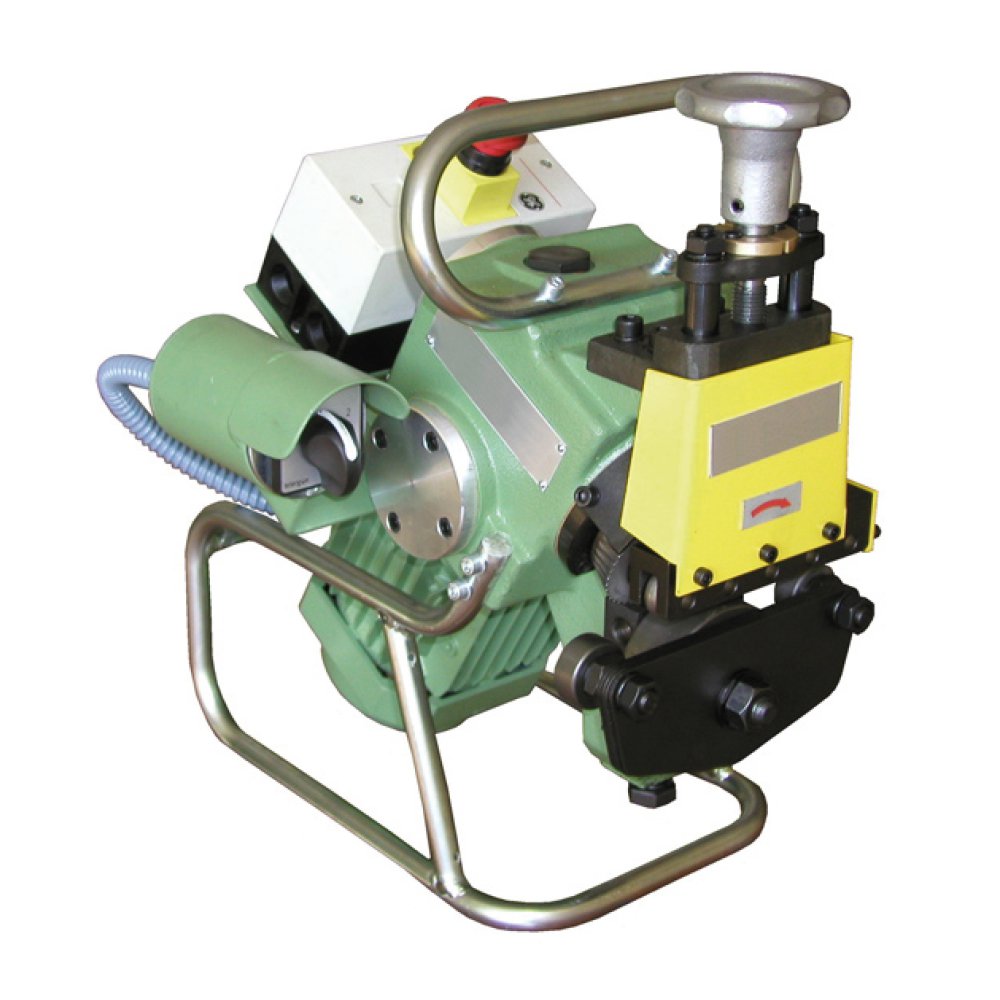

Product images:
