RADIMAX

Keypoints:

  • - Various materials
  • - Can bevel pipes
  • - Hand-held
  • - Electronic. regulated speed
  • - Straight and curved edges



RADIMAX is an easy to use hand-held bevelling machine with electric drive. It can bevel plates of unlimited thickness. The maximum bevel width is 16mm and the bevelling angle can be set up to 22.5°, 30°, 37.5°, 45°, 55° or 60° simply by changing the toolholder.

The standard machine comes with one toolholder and customers are invited to buy toolholders for different angles in accordance with their needs. The beveller can be used to bevel straight edges as well as on curved shapes and holes from 38mm in diameter. Mirror finish will be achieved on most material types.

RADIMAX has electronically regulated speed of rotation for various materials such as steel, aluminum, stainless steel and plastic. Thanks to its compactness and light weight, RADIMAX is suitable for using in places with limited access and for bevelling short edges.

Technical data

Maximum bevel width  16 mm
Bevelling angle  22.5°; 30°; 37.5°; 45°; 55°; 60°
Plate thickness min. 1.5 mm
Radius R2, R3, R4, R5
Motor power 2 200 W
Motor idle speed 1 800 - 5 850 rpm
Voltage  230 V/50 Hz or 110 V/60 Hz
Machine weight 10 kg
electric version
Do you have a question about this product?

Product images:

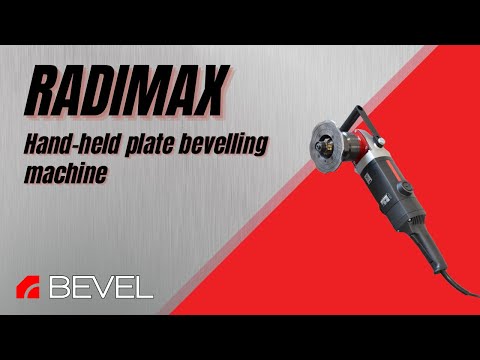

Product videos:
