RADILITE

Keypoints:

  • - Lightweight and compact design

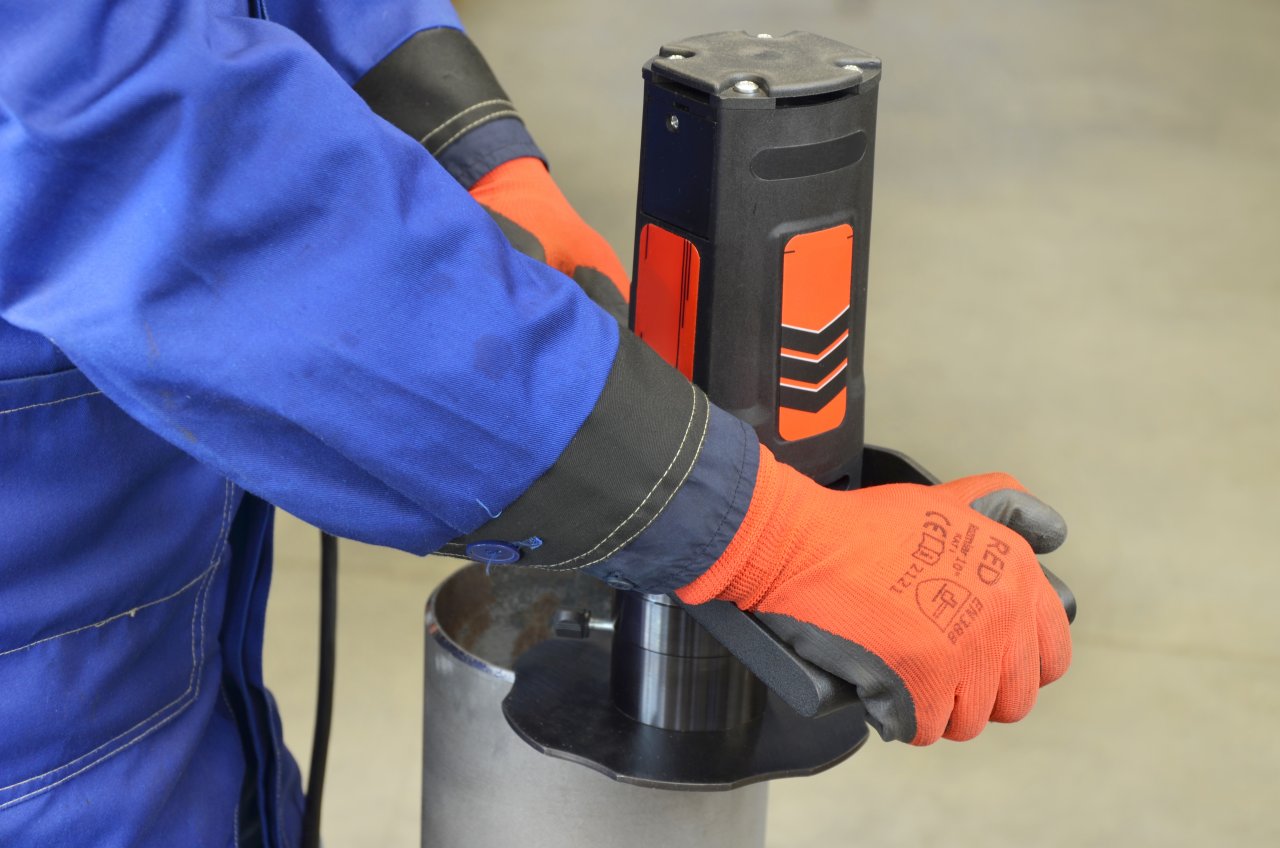

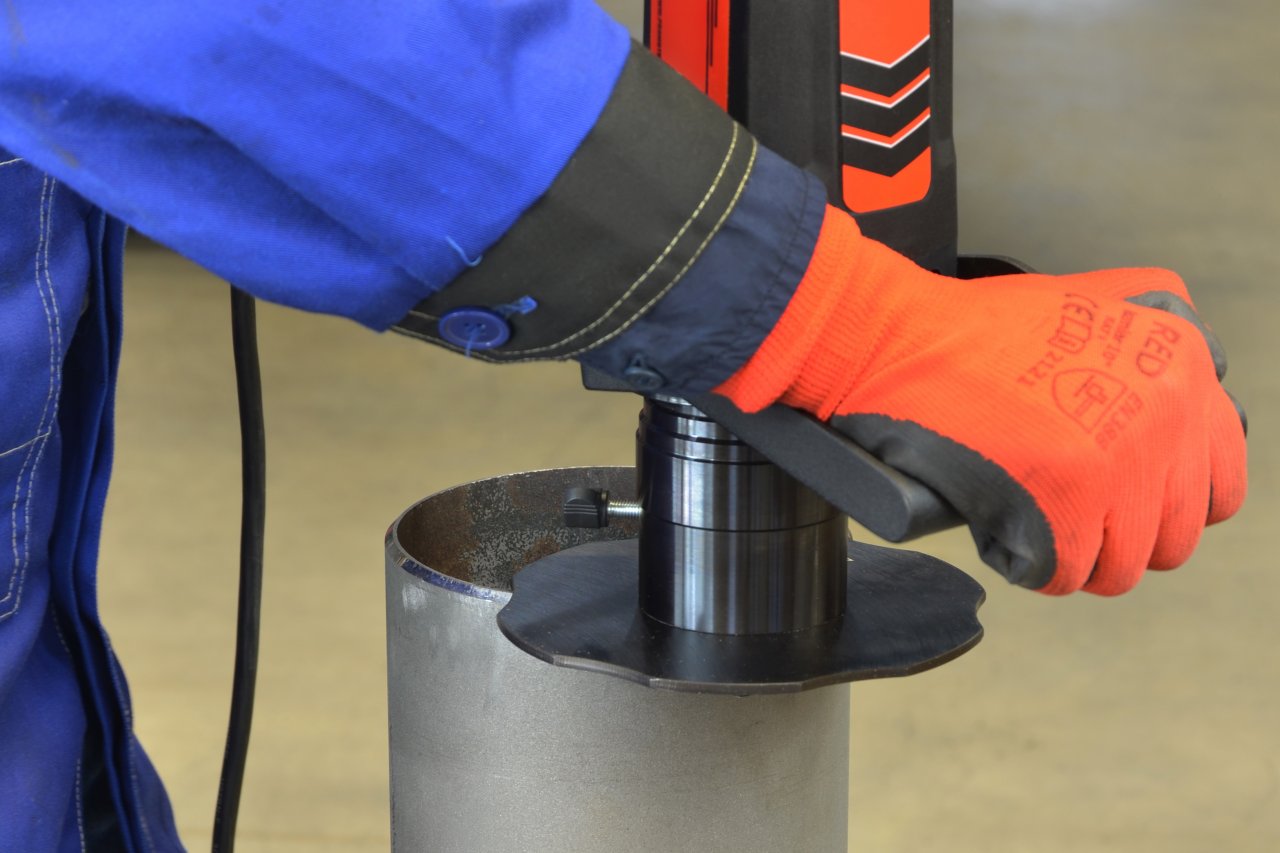

  • - Can bevel pipes
  • - Straight and curved edges
  • - Allows bevelling with a radius up to R5
  • - For places with limited access

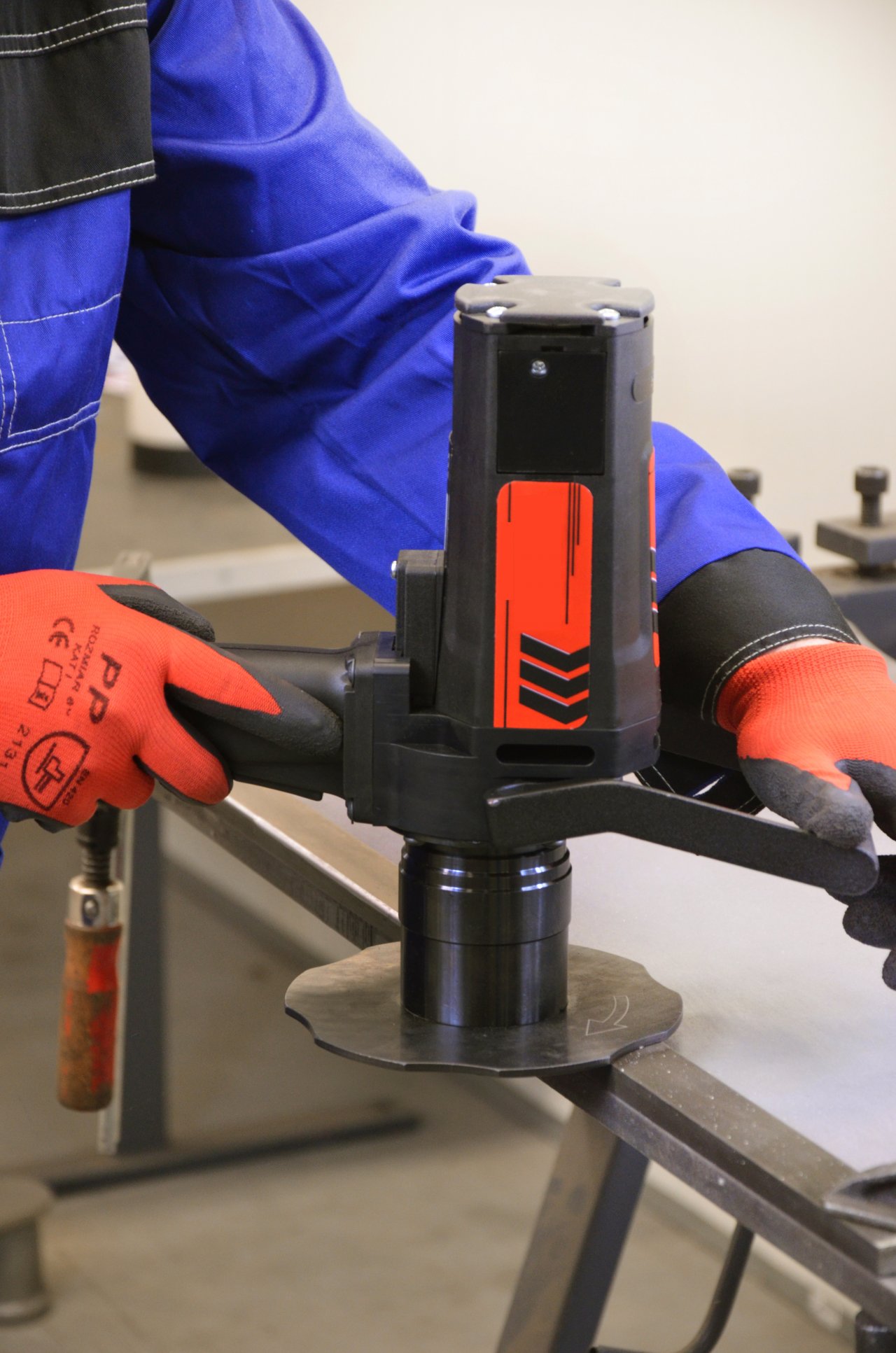

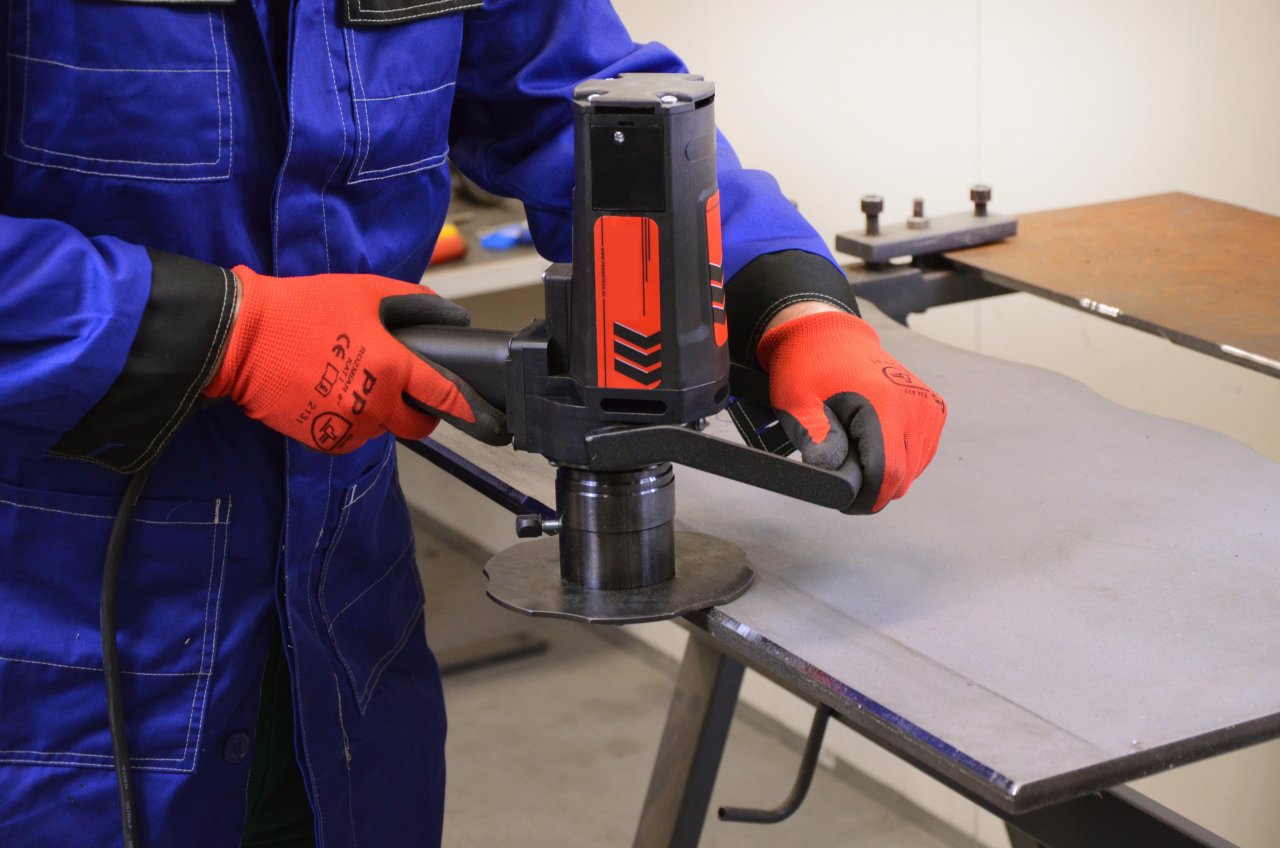

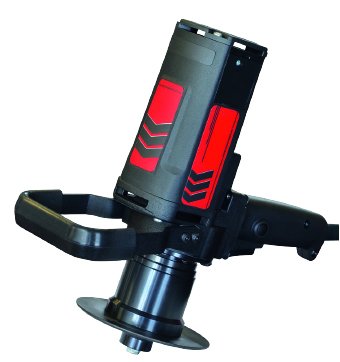

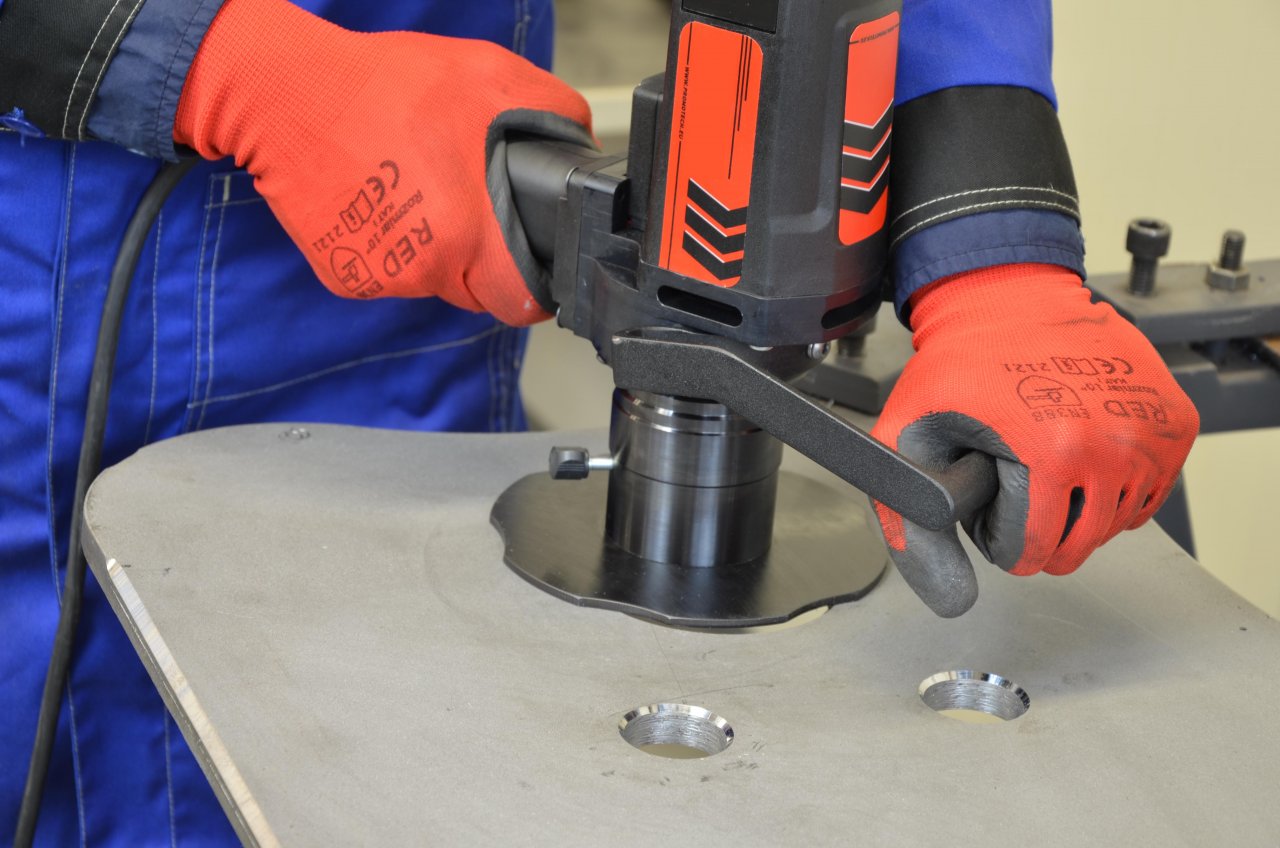

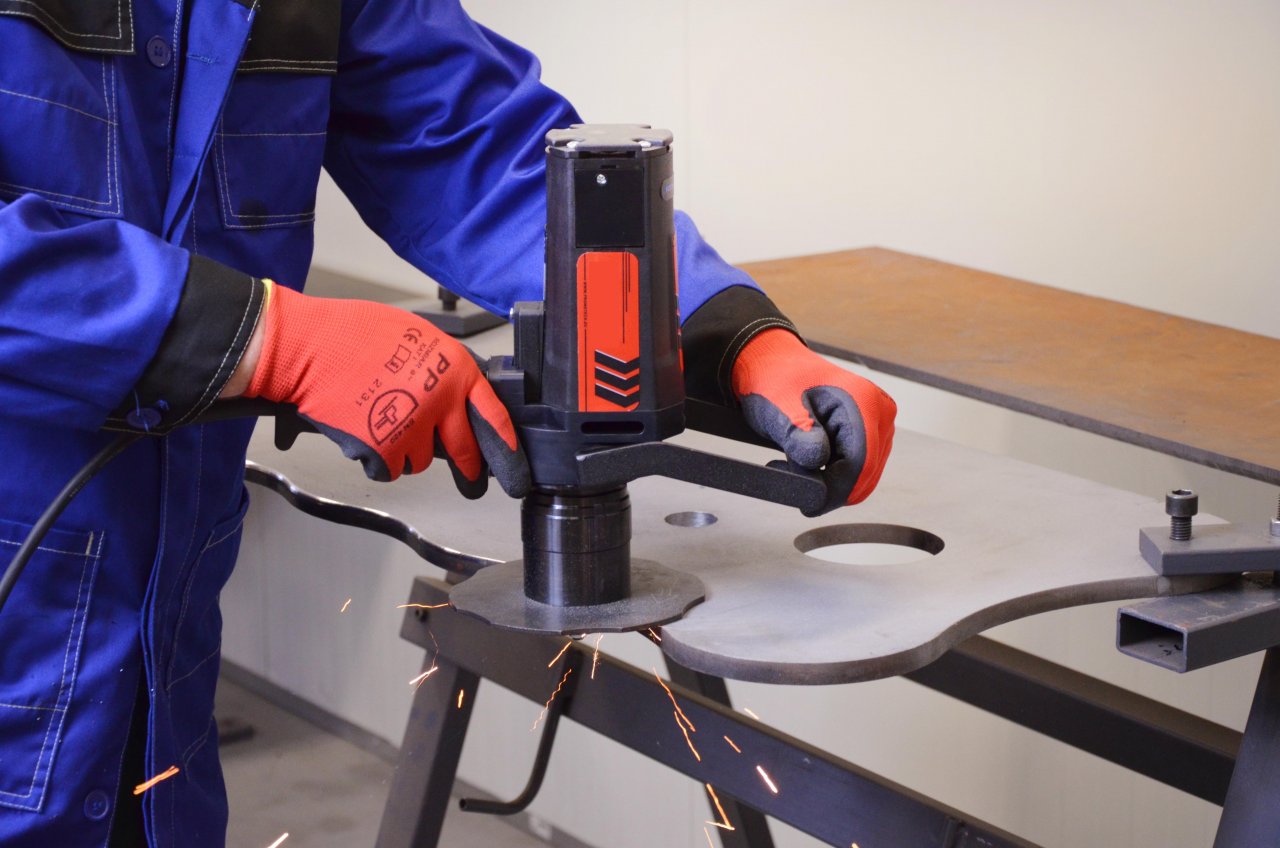

RADILITE is fast, easy to use hand held bevelling machine saving your time and money. This beveller can be used to bevel straight edges as well as on curved shapes and holes from 35 mm in diameter. The maximum bevel width is 7 mm.

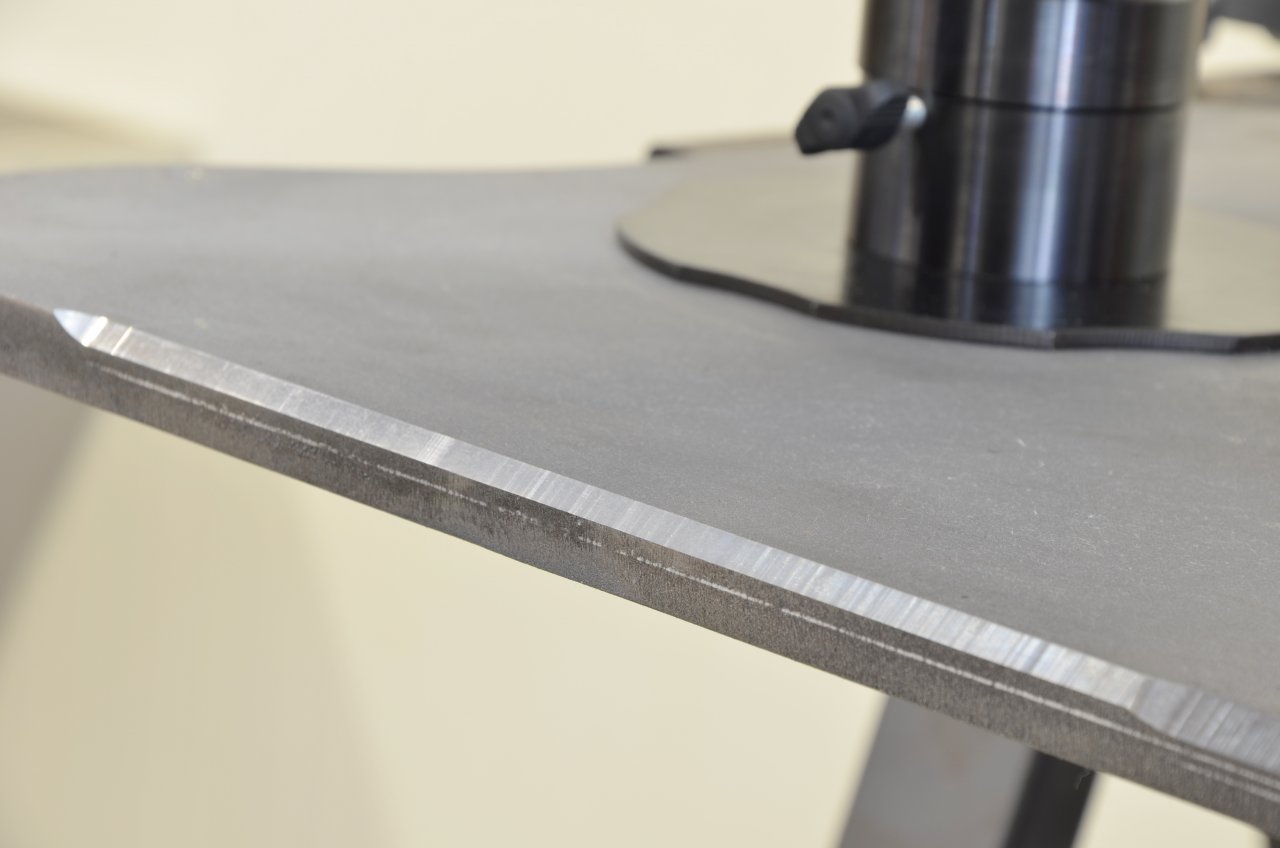

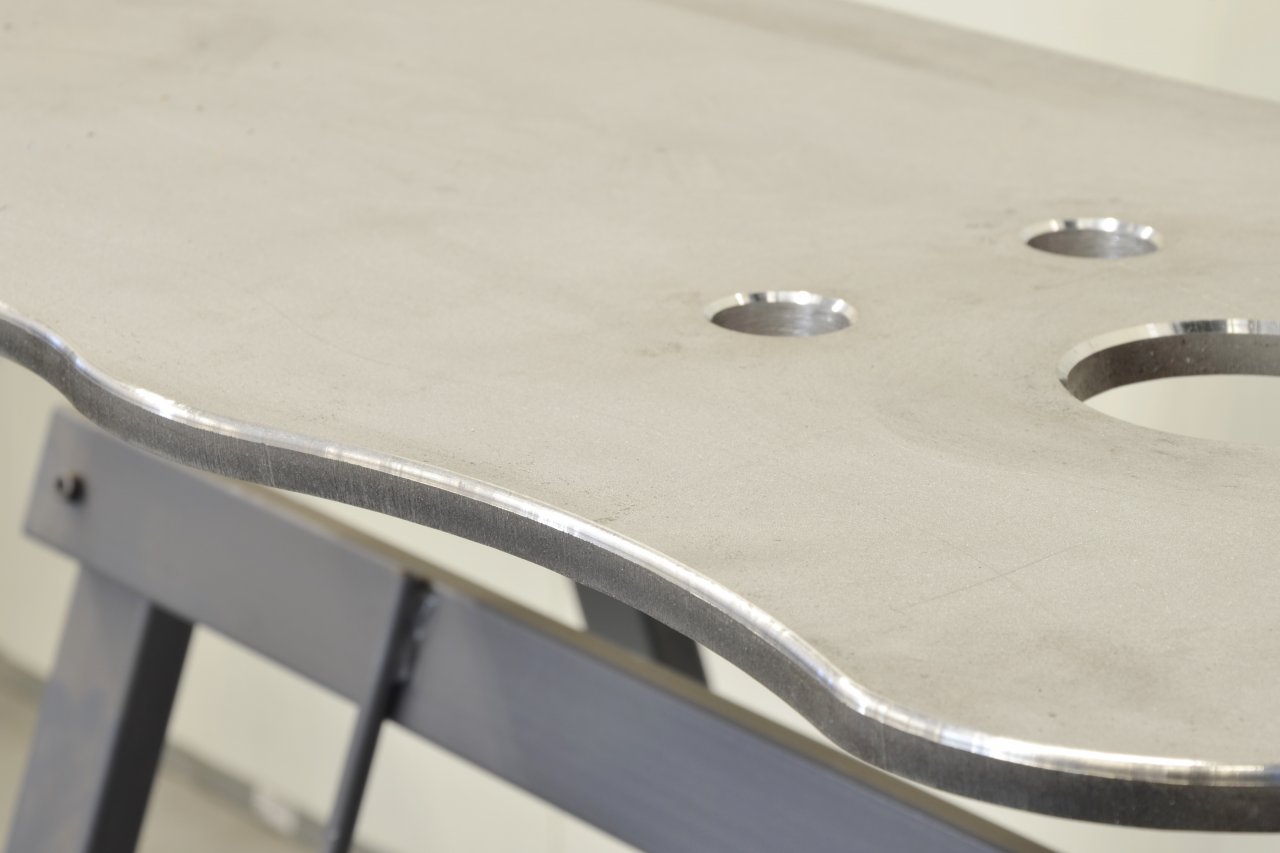

It is ideal solution for bevelling plates with a radius R2 – R5. It is often applied as a preparation before painting to prevent flaking and rust on sharp edges. The standard machine comes with one single 45 degrees toolholder for both radius and V bevels and customers are invited to buy insets for different radius in accordance with their needs.

Thanks to its compactness and light weight, RADILITE is suitable for using in places with limited access and for bevelling short edges.

Technical data

Maximum bevel width       7 mm
Bevelling angle 45°; 30° optional
Plate thickness min. 1.5 mm
Radius R2, R3, R4, R5
Motor power 1 100 W
Motor idle speed 6 500 rpm
Voltage 230 V/50 Hz or 110V/60 Hz

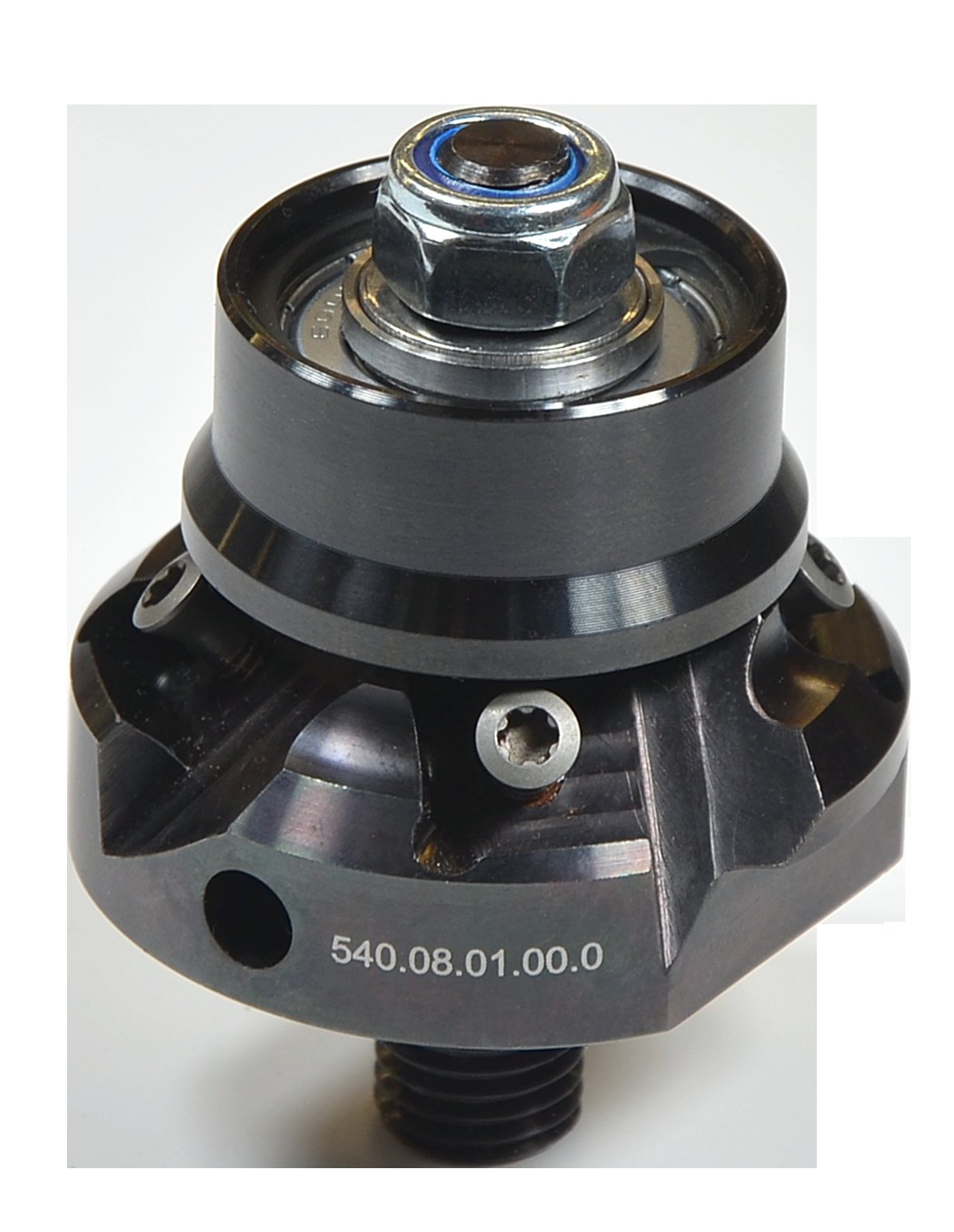

Tooling 4 changeable inserts sharp on all four sides
Machine weight 5.8 kg
electric version
