  • - Lightweight
  • - Smallest diameters
  • - Quick and smooth
  • - Can be used in pipe walls
  • - Available with auto-lock

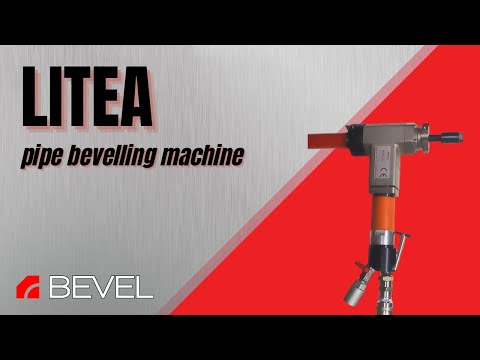

LITEA is a lightweight pipe beveller for the smallest pipe diameters. This machine is locked from the inside and performs an inside bevel, outside bevel and facing simultaneously, quickly and smoothly. A locking diameter can be set to 20 - 42 mm with a single shaft; or can be locked in a pipe from 12.5 mm ID using the reduced shafts. The machine’s weight is only 5.5 kg.

Bevelling of plastic pipes is possible with special locking jaws. Bevelling blades for virtually any application can be suggested. The machine is also available with an optional pneumatic auto-locking device. LITEA can be supplied with either a pneumatic or electric drive. Fully automatic version LITEAMAT is available for customers requiring repetitive bevels.

Technical data

Locking range 20 - 42 mm
Axial feed 23 mm
Motor power 430 W
Idle speed 245 rpm
Weight 4.8 kg
Compressed air pressure 6 bar
Compressed air consumption 440 l/min
Locking range 20 - 42 mm
Axial feed 23 mm
Motor power 670 W
Voltage 110 V/240 V, 50 Hz
Idle speed 250 rpm
Weight 5.5 kg
Noise level 75 dB
pneumatic version
electric version
